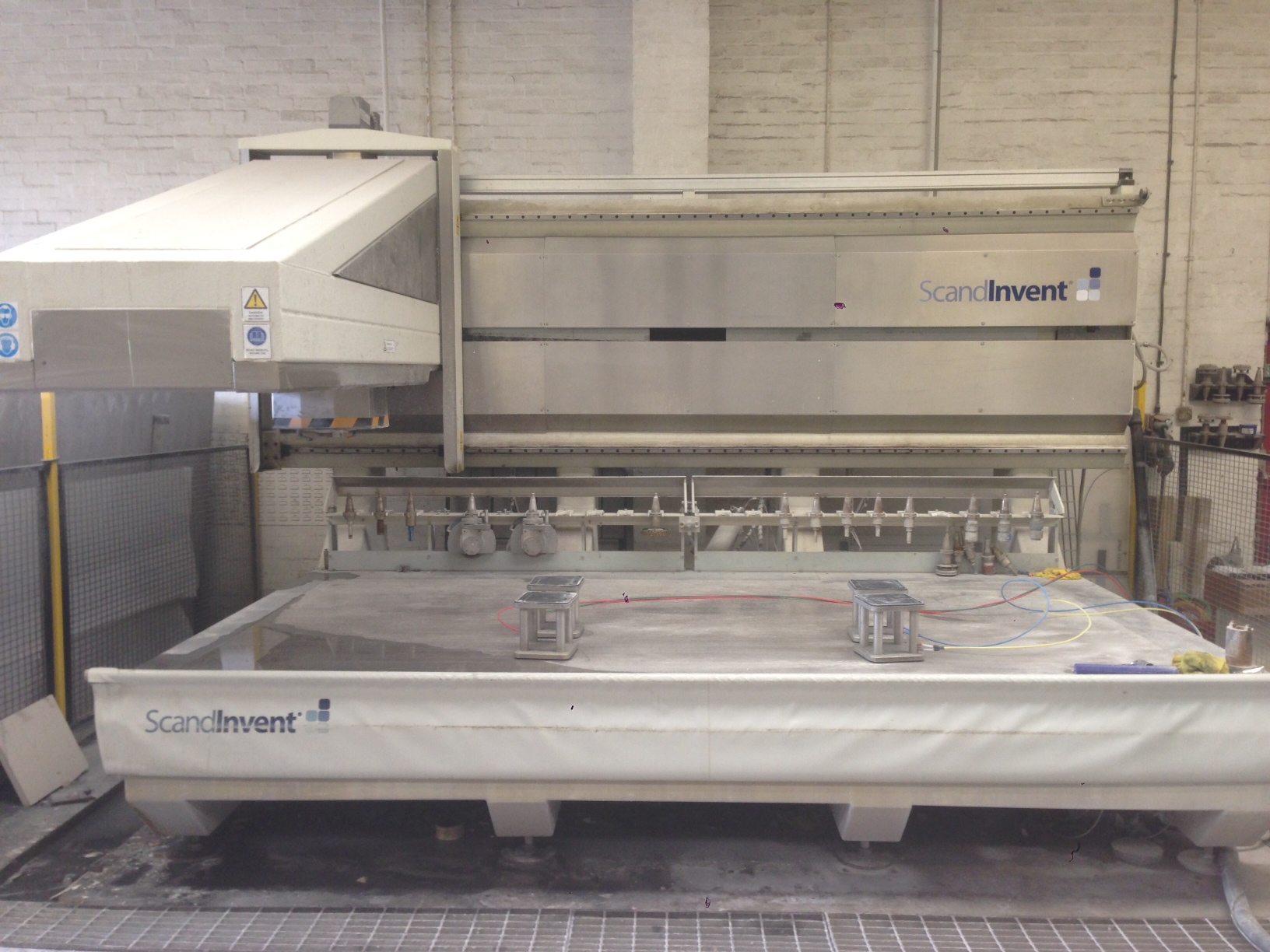

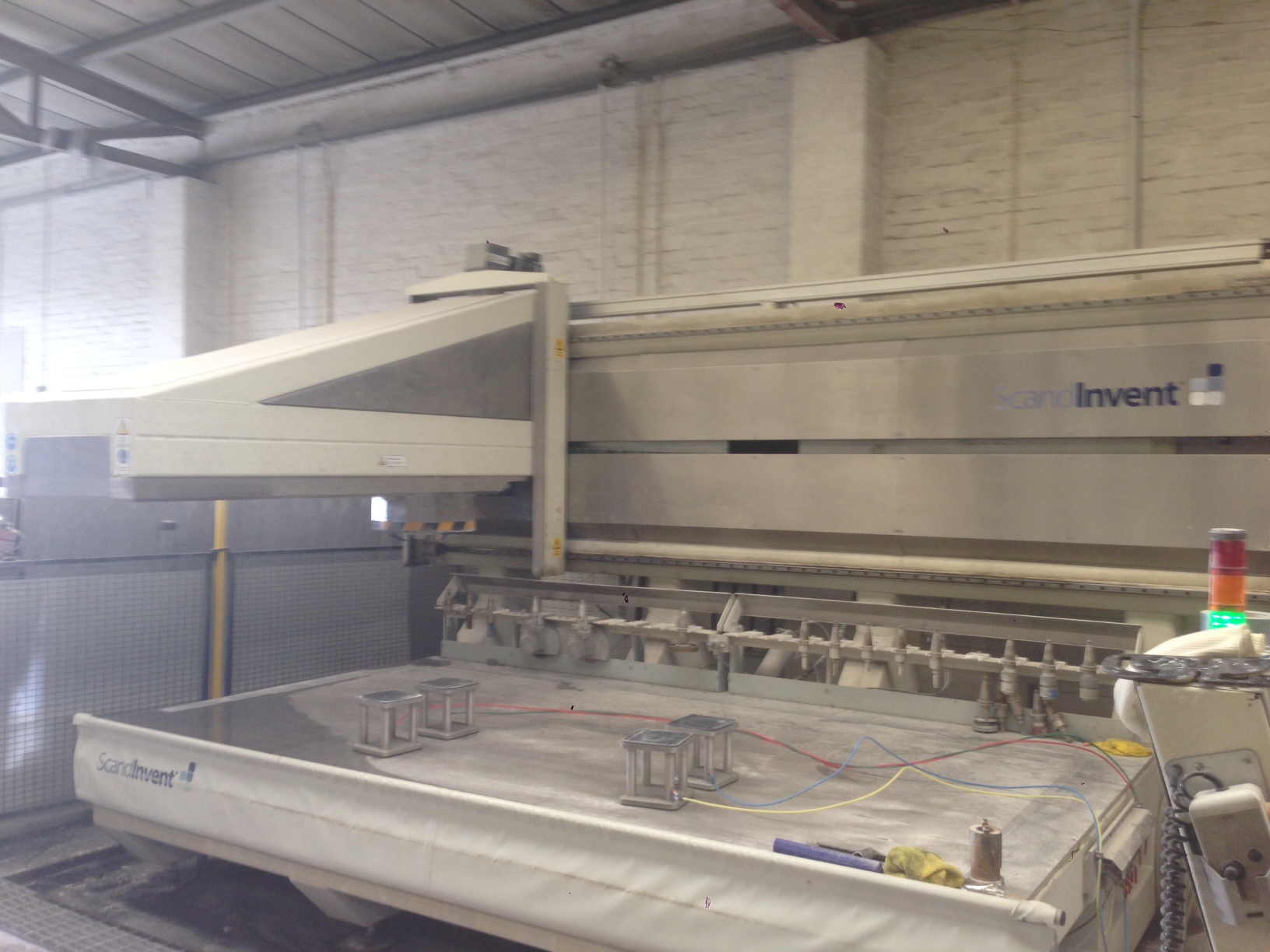

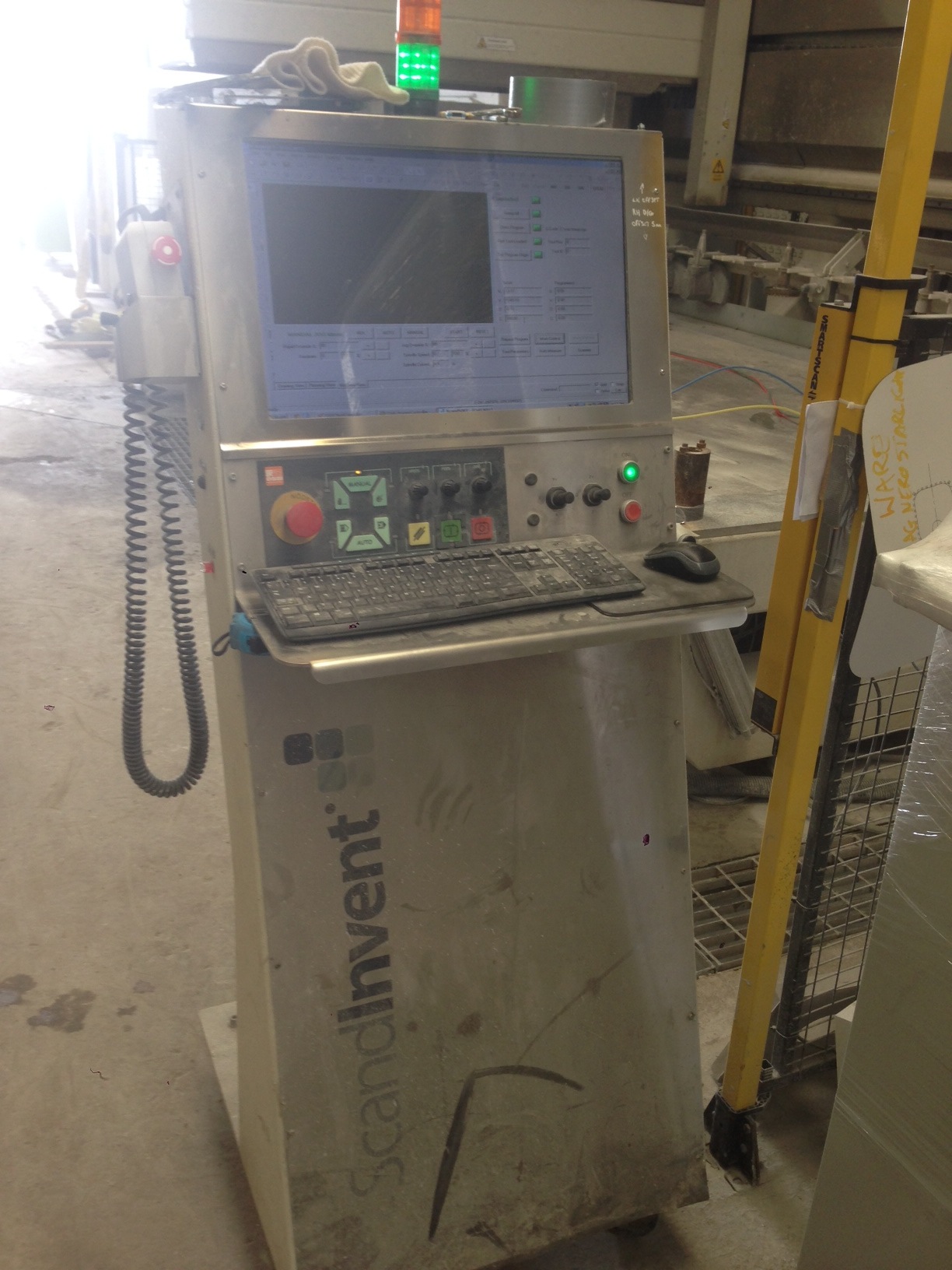

ScandInvent CX4 - SOLD
ScandInvent CX4 ScandInvent CX4 ScandInvent CX4 ScandInvent CX4 ScandInvent CX4

For sale due to purchase of new machine.

Options include;

· Auto tool measuring
· Drainer Groove gearbox aggregates
· 300mm blade aggregate
· Full set of drainer gooves

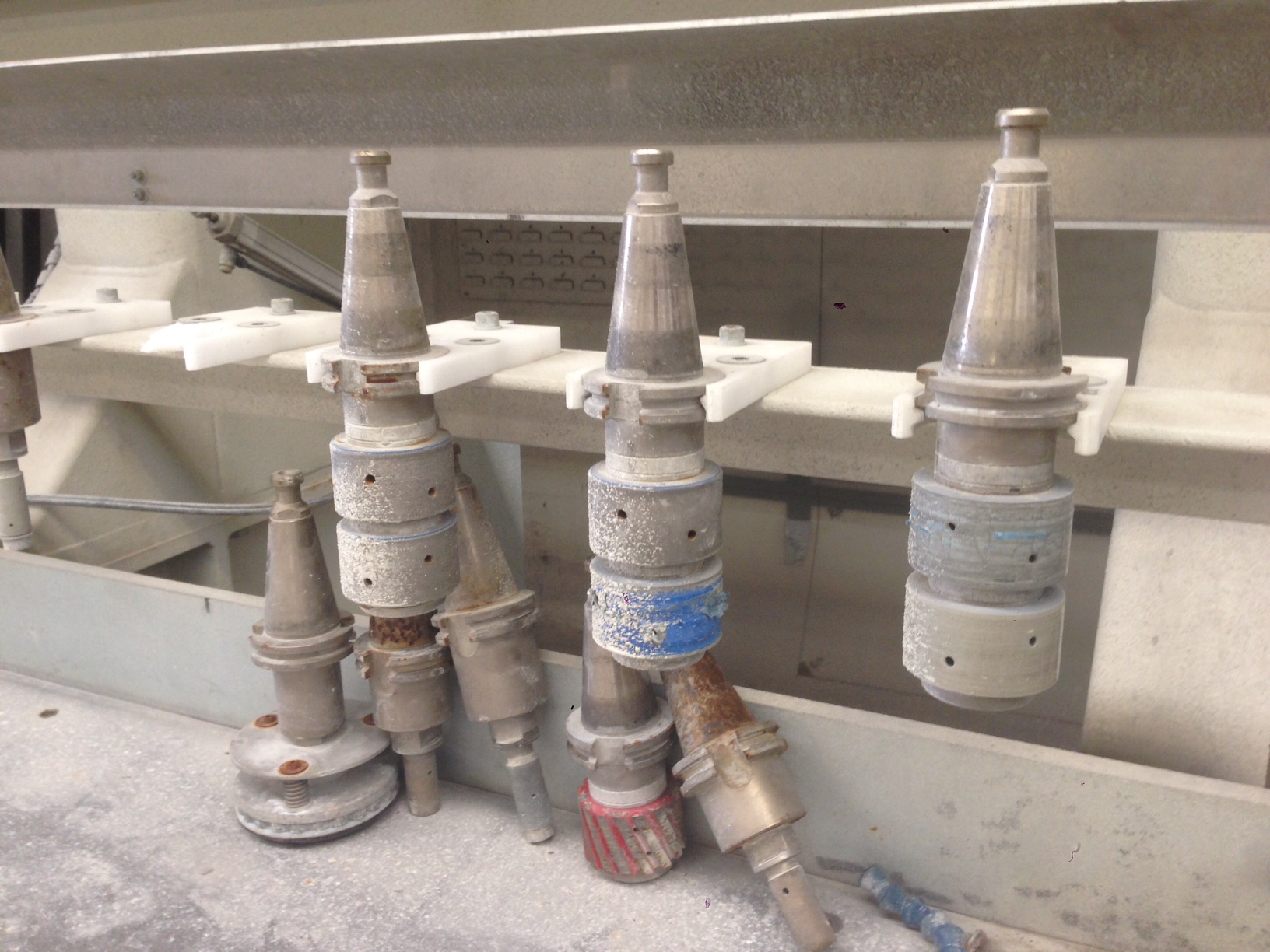

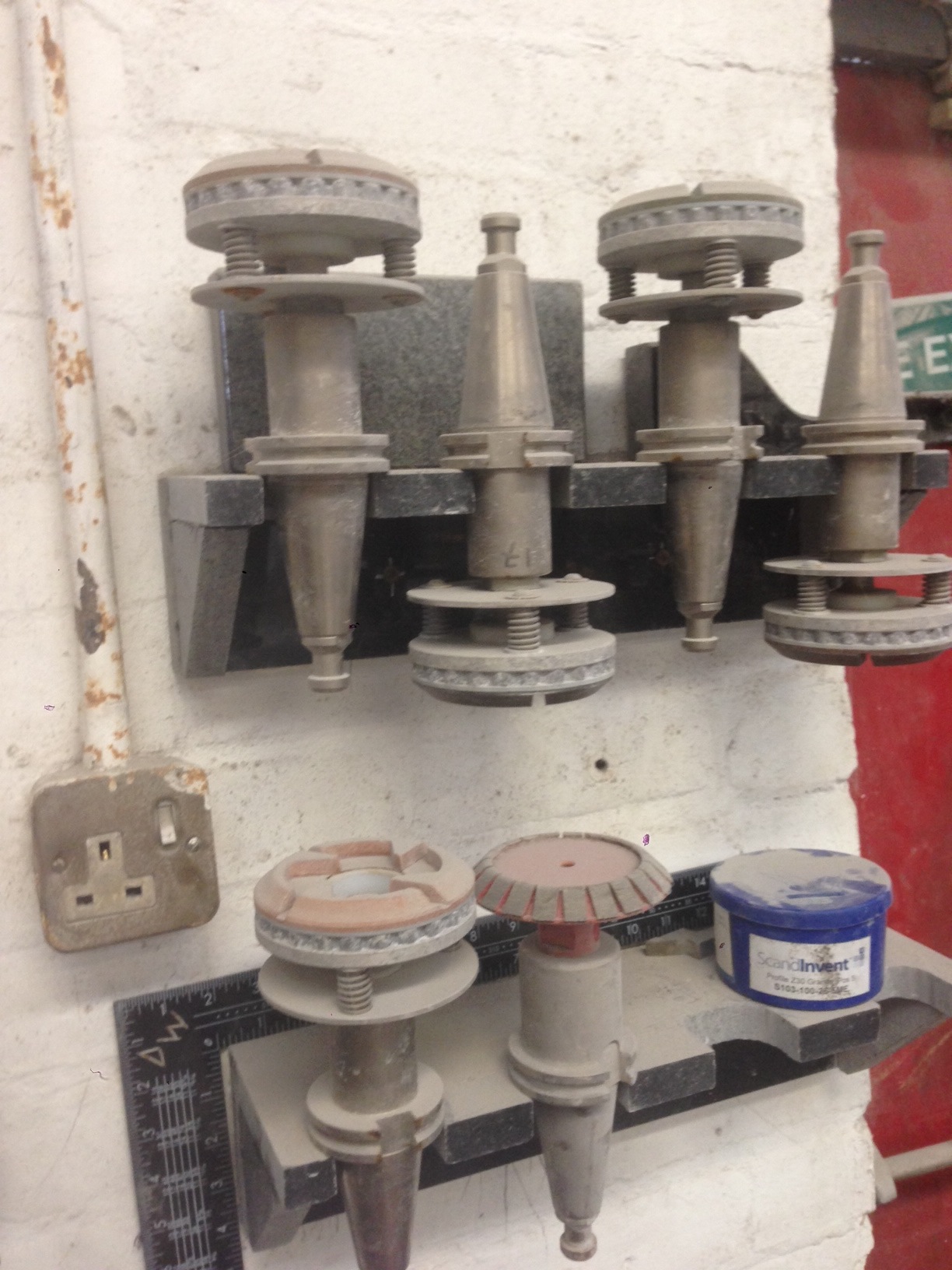

· Tool holders and full tool set included

Dimension of the worktable

3800 mm x 1900 mm 153.5 x 74.8 inch

Cutting stroke X-axis (along back)

3350 mm 131,8 inch

Cutting stroke Y-axis (in and out)

1900 mm 74,8 inch

Cutting stroke Z-axis (up and down)

450 mm 17.7 inch

Motor Power

9,2 kW 12,3 Hp

Max rotation on the spindle unit

12000 rpm

Dimensions (LxWxH)

4500x3050x2900 mm 177x120x114 inch

Weight

4500 kg

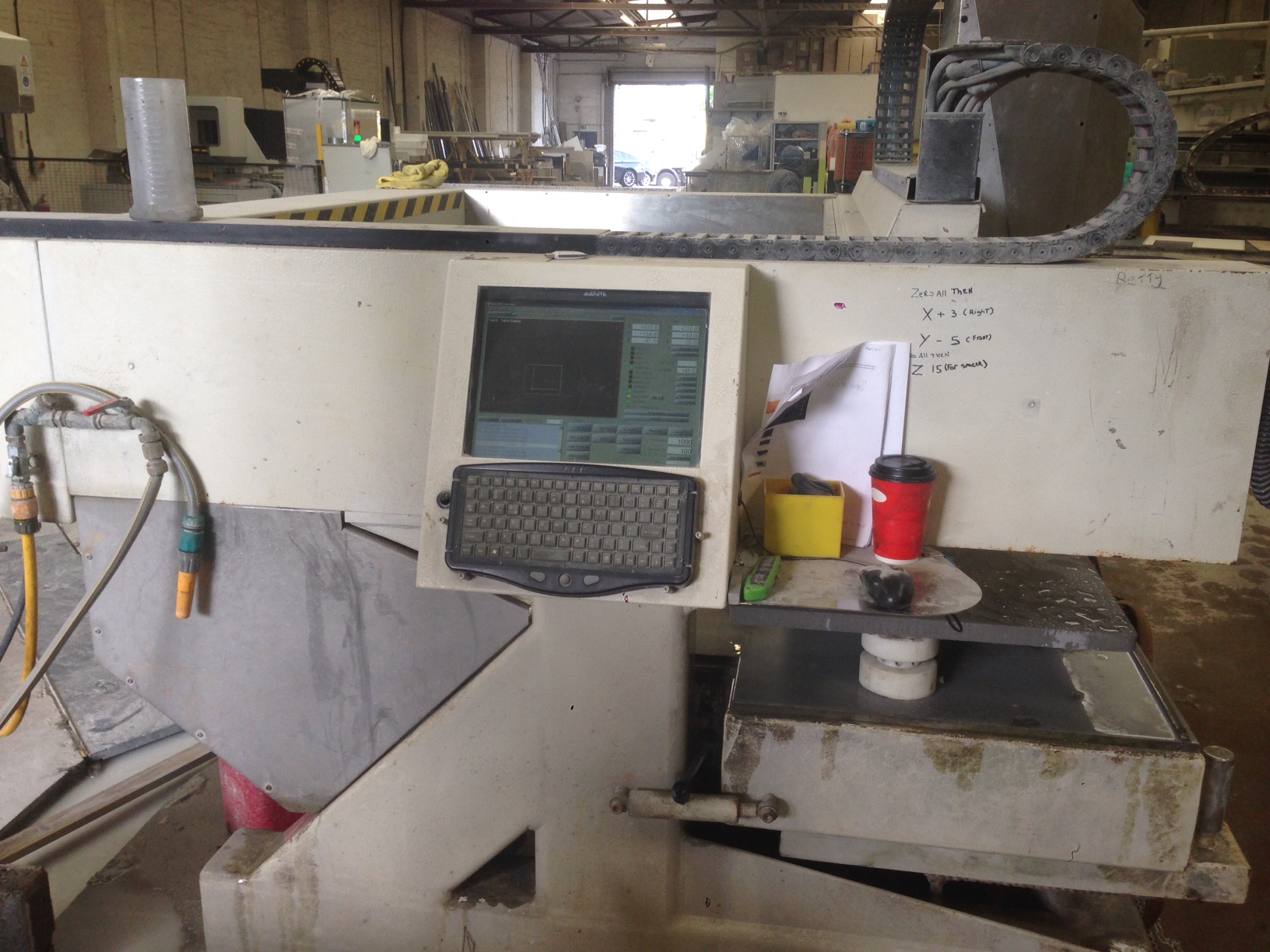

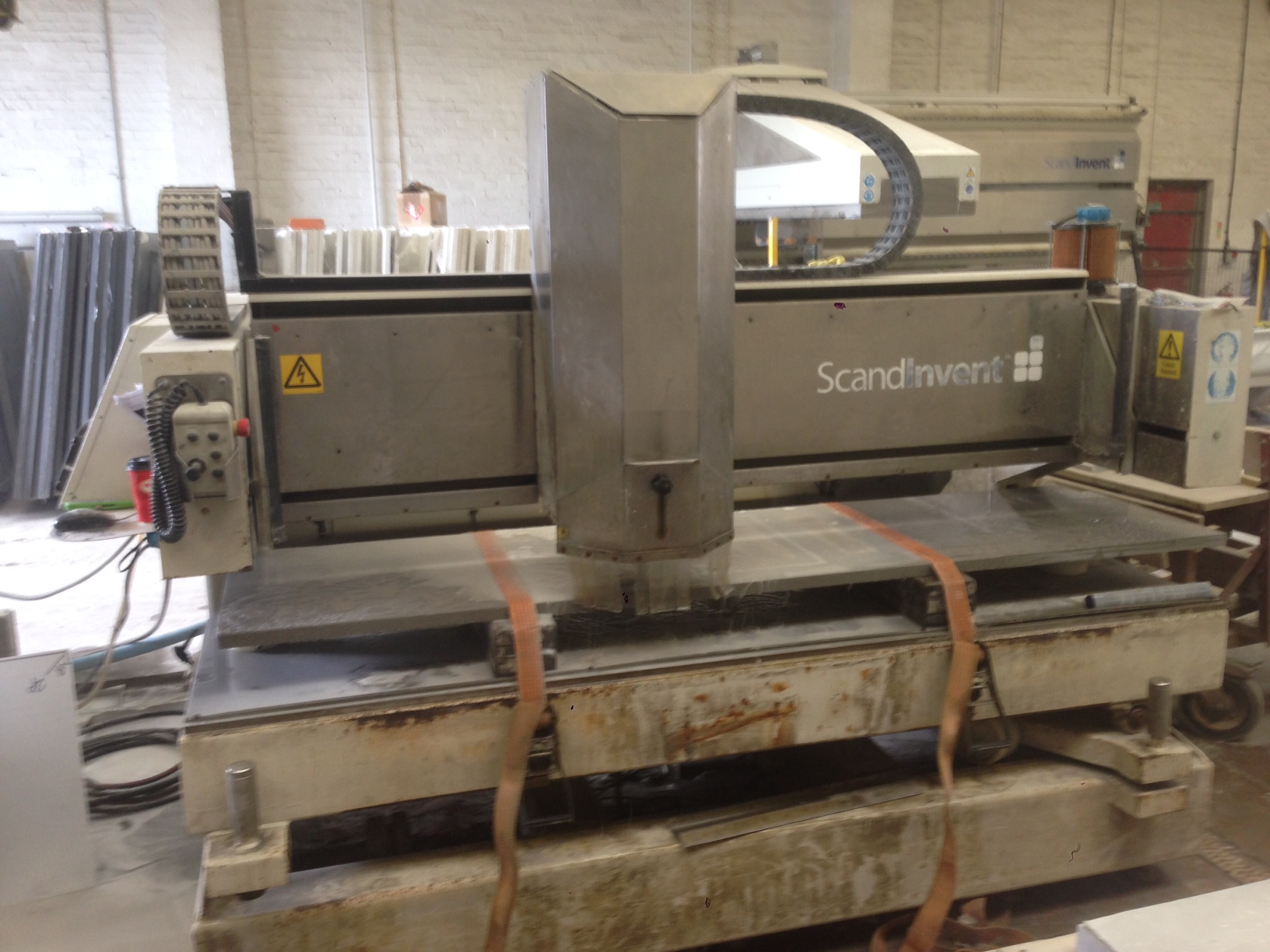

ScandInvent C4 - SOLD
ScandInvent C4 ScandInvent C4

For sale due to purchase of new machine.

Currently used as a backup for rough & cut-outs only. Recently undergone full documented service.

Ideal starter for small factory.

Technical Data

Travel, X 1500 mm / 59”
Travel, Y 1150 mm / 45”
Travel Z 220 mm / 8,6”
Spindle power 7,5 hp
Spindle speed 0-9000 rpm
Tool connection ISO 40
Width 2550 mm / 100”
Depth 2100 mm / 82,5”
Height 1825 mm / 72”
Weight 2100 Kg / 4,620 lbs
